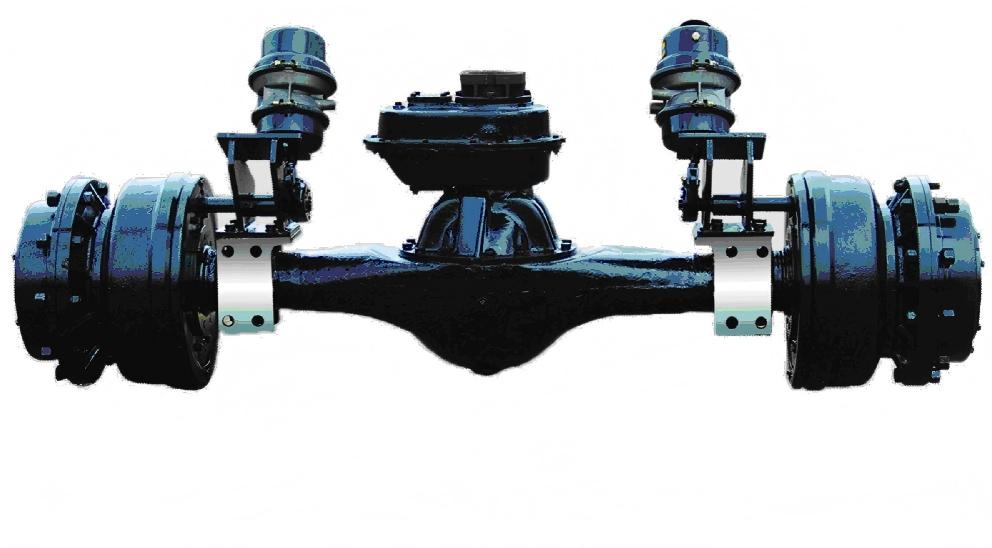

Mixer Drive Axle

Introduction:

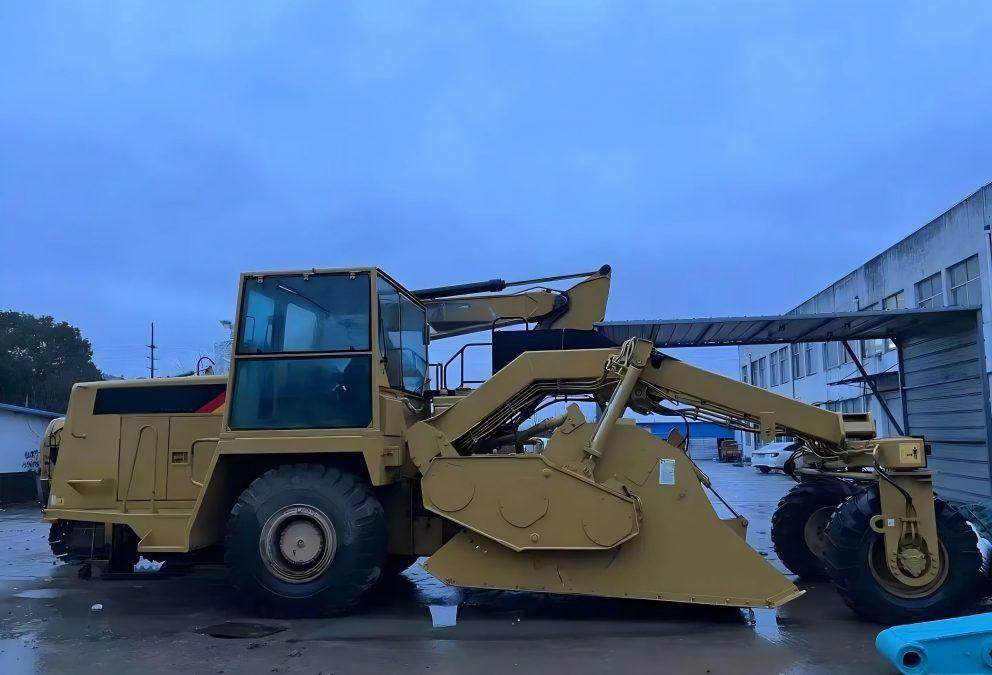

Mixer Drive Axle, designed for 21-23 ton stabilizers, features a highly integrated design.By combining the transmission and drive axle into a single unit, it eliminates the traditional propeller shaft. This reduces component count and potential failure points while streamlining the power transfer path, significantly improving transmission efficiency. For stabilizers requiring sustained high-power output, this translates to enhanced fuel efficiency and operational productivity.The integrated design also reduces unsprung mass, improving vehicle handling and stability. This approach demands advanced manufacturing techniques. The robust connection between the axle and transmission ensures exceptional rigidity under severe vibration and impact loads, providing fundamental reliability for stable and efficient operation on rough terrain.Additionally, the transmission offers multiple motor interface options, accommodating different OEM configuration preferences and hydraulic system requirements. This flexibility reflects a platform-based design philosophy, enabling greater adaptability across various host machines.

The axle utilizes a three-stage reduction system with a maximum ratio of 163.24, delivering smooth high-torque output. Its two-speed transmission employs an optimized pneumatic shift fork mechanism for minimal shift shock, rapid response, and reliable engagement. The braking system features internally expanding dual-shoe fail-safe brakes actuated by air chambers, providing high braking torque with immediate and reliable stopping power. Integrated service and parking functions simplify the structure while enhancing operational convenience.

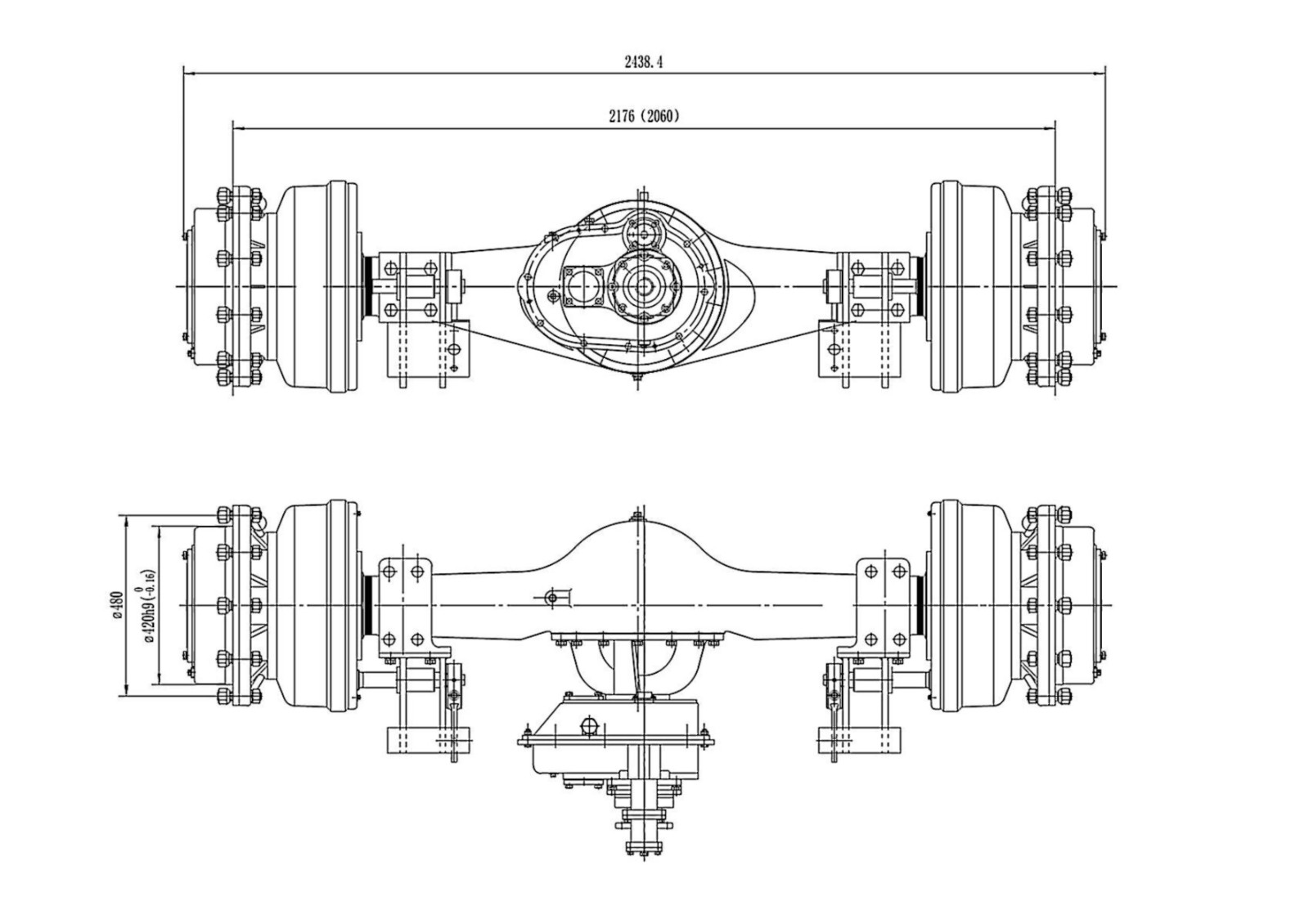

Main technical parameters:

Why choose us

We adhere to reliability as our core principle, integrating modular and platform-based design philosophies to deliver products with compact structures while maintaining exceptional adaptability and scalability. This drive axle not only inherits the proven rigidity, durability, and stability of our engineering machinery axles but also achieves breakthroughs in integrated assembly, transmission efficiency, and braking performance. It fully meets the continuous, heavy-duty operational demands of mixers under harsh working conditions.

Currently, the company is actively expanding into international markets. This product demonstrates our commitment to serving global customers with mature technological systems and high-end manufacturing capabilities. We are equipped to provide customized solutions tailored to regional working conditions and OEM requirements, and we look forward to collaborating with overseas partners to advance the development of efficient and reliable drive technologies for mixing equipment.
