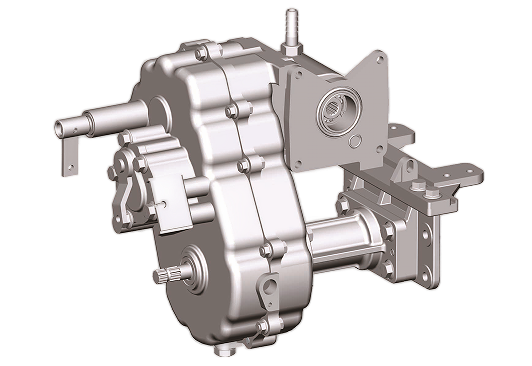

Spraying Locomotive Gearbox
1. Two-speed transmission reducer drive ensures versatile operation.
2. Multiple motor input interface sizes accommodate different configurations.
3. High-strength aluminum alloy housing features a compact and lightweight design.
4. Wet multi-disc parking/service brake ensures safety and reliability.
5. Suitable for 14.5–25 hp self-propelled boom sprayers.
Introduction:
Spraying locomotive gearbox is suitable for 14.5-25 horsepower self-propelled boom sprayers. It adopts a two-stage deceleration transmission as a whole, meeting the power requirements. The housing is made of high-strength aluminum alloy, making it lightweight and durable. With wet braking and integrated service & parking braking, it ensures strong reliability.
Main technical parameters:
Maximum input power | 25PS | |
Maximum input speed | 2800r/min | |
Transmission ratio | High gear ratio | 2.13 |
Low gear ratio | 5.67 | |
Shift way | Machine shift | |
Oil request | GL-5:85W/90 Gear Oil | |
With the motor spline | 15x13x1 JISD2001 A1=17 A2=18 | |
15x18x0.75 DIN5480 A1=3.5 A2=25 | ||
Braking way | Hidden within the multi-plate wet braking | |
