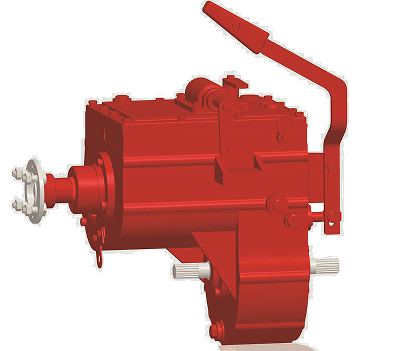

Spray Machine Gearbox
1.Suitable for diverse working conditions.
2.Smooth and flexible operation.
3.Compact and rational structure.
4.Low operational noise with high reliability.
Introduction:

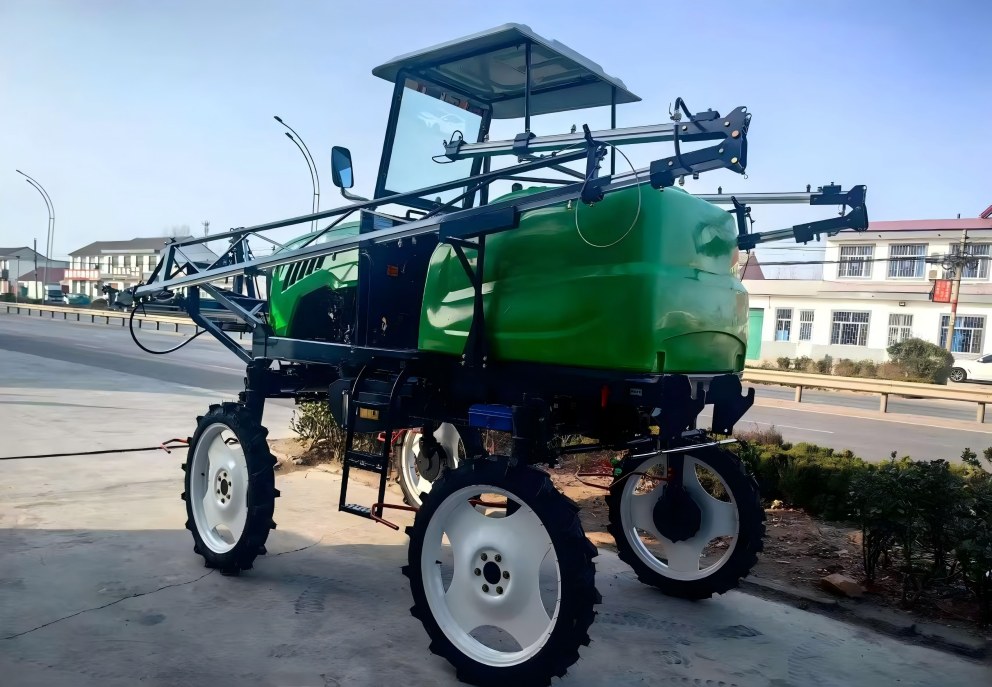

Spray machine gearbox is designed for 14.5–25 hp self-propelled boom sprayers. This transmission meets the power requirements for field crop operations, as well as narrow-row applications in vegetable greenhouses and orchards.For complex agricultural conditions, it offers 6 forward and 2 reverse gears, each tailored to specific scenarios:Low gears deliver high torque for muddy fields, post-rain soils, or hilly terrain, ensuring stable sprayer movement without wheel slip-induced uneven spraying, while maintaining consistent boom height.Medium gears are designed for routine field crop spraying, covering growth stages from seedlings to maturity, balancing efficiency and chemical adhesion.High gears facilitate field transit or empty machine movement, reducing non-operational transfer time.Reverse gears feature short travel and smooth engagement for easy turning in narrow rows, minimizing crop damage from repeated adjustments.
Internally, an optimized shifting sleeve assembly paired with precision-ground gears and reinforced synchronizers ensures smooth shifting responsiveness and reduced shock, maintaining power stability even under sudden load changes. Critical components include high-strength gear materials, wear-resistant bearings, and premium seals, manufactured and assembled to precision standards for low noise, minimal heat generation, and extended service life. The sealed housing performs reliably in dusty, humid field conditions, with proven durability reducing maintenance frequency and long-term operating costs.
Main technical parameters:
Maximum input power | 25PS | |||
Maximum input speed | 2800r/min | |||
Oil request | GL-5:85W/90 Gear Oil (above -12°） | |||
Speed rotation on each gear | FⅠ | FⅡ | FⅢ | R |
High gear ratio | 7.03 | 3.02 | 1.5 | 6.47 |
Low gear ratio | 20.9 | 8.99 | 4.46 | 19.26 |
Shift way | Mechanical shift | |||
Selecting force ratio | 2.59 | |||
Company Strength:
With over three decades of specialization in drivetrain systems, our company remains committed to delivering efficient and reliable power solutions for global construction machinery, mining equipment, and agricultural machinery. Leveraging proven expertise in engineering drive axles, we have successfully expanded our core capabilities into mining and agricultural sectors, establishing cross-industry synergies for diverse applications.This sprayer transmission exemplifies our cross-domain technological integration. It inherits the rigorous durability standards of construction machinery, incorporates core technologies from our drive axle transmission systems, and integrates deep insights into agricultural operations. Manufactured with precision and reliability, it delivers a trusted power solution for agricultural users.
