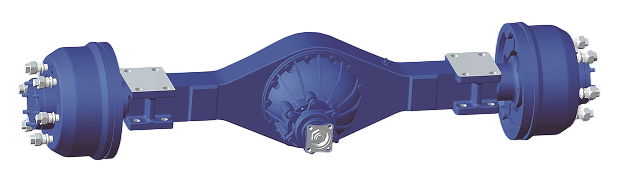

6.5 Ton Wheel Excavator Rear Drive Axle
1. Main redactor assemblies utilize Isuzu - compatible components. These components are well - proven and robust, and can be sourced without difficulty.
2. The wheel - side brake adopts a hydraulic normally - open shoe type design, ensuring secure and stable braking performance.
3. The axle housing is fabricated from cast steel, endowing it with high load - bearing capacity and excellent rigidity.
4. It is applicable to 6 - 7 ton wheel - type excavators.
Introduction:
Specifically designed for 6 - 7 ton wheeled excavators. The main reducer uses Isuzu - interchangeable parts, which are mature, reliable, and easy to purchase, ensuring the continuous and efficient operation of the equipment.Equipped with a hydraulic normally - open shoe - type wheel - side brake, it offers safe and reliable braking, enabling stable parking in various working conditions.The entire axle housing is made of cast steel, featuring high load - bearing capacity and excellent rigidity, and can easily handle complex and heavy - duty working environments. From component selection to overall structural design, it is guided by the pursuit of excellent quality, providing a solid guarantee for your engineering operations. It is a reliable choice for wheeled excavator equipment.
Main technical parameters:
Total transmission Ratio | 6.167 |
Maximum output torque | 7000N.m |
Rating load | 4500Kg |
Braking oil pressure | 10Mpa |
Single brake caliper capacity | 5ml |
Oil request for driving axle (API standard) | GL-5; 85W/90 Gear Oil ( above -12°C) GL-5; 80W/90 Gear Oil ( above -26°C) |
Oil request for brake | Synthetic brake fluid of DOT3 or 719, not allow mix！ |
Suitable wheel hub | 6.5-16 |
Suitable tire | 7.50-16 |
Wheel lubrication | 2 Lithium lubrication grease |
Weight | 280Kg |
