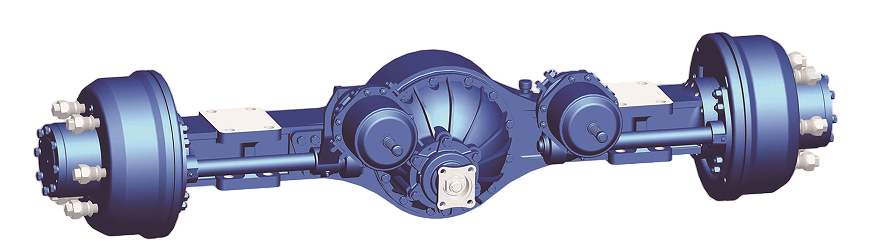

6.5 Ton Wheel Excavator Rear Axle
1. The main redactor assembly employs interchangeable Isuzu parts. These parts are well - developed, dependable, and readily available for purchase.
2. The wheel - side brake features a pneumatic CAM - actuated normally - closed hoof type, combining the functions of the driving brake and parking brake.
3. Constructed from cast steel, the entire axle case has high load - bearing capacity and excellent rigidity.
4. It is applicable to wheel excavators with a weight range of 6 to 7 tons.
Introduction:
6.5 ton wheel excavator rear axle is specifically designed for 6 - 7 ton wheel excavators. The main reducer assembly uses Isuzu interchangeable parts, which are mature, reliable, and easy to procure, ensuring stable operation of the equipment and convenient maintenance. The wheel - side brake is of the pneumatic CAM normally - closed hoof type, ingeniously integrating the functions of service and parking brakes for efficient and safe braking. The entire axle housing is made of cast steel, boasting high load - bearing capacity and excellent rigidity, enabling it to adapt to complex working conditions. Whether in terms of component reliability, braking performance, or the structural strength of the axle housing, it demonstrates outstanding advantages, making it an excellent choice for wheel excavators.
Main technical parameters:
Total transmission Ratio | 6.167 |
Max output torque | 7000N.m |
Rating load | 4500Kg |
Braking way | CAM type pneumatic |
The brake pressure | 0.8Mpa |
Parking brake lifting pressure | 0.8Mpa |
Oil request for driving axle (API standard) | GL-5; 85W/90 Gear Oil ( above -12°C) GL-5; 80W/90 Gear Oil ( above -26°C) |
Suitable wheel hub | 6.5-16 |
Suitable tire | 7.50-16 |
Wheel lubrication | 2 lithium lubrication grease |
