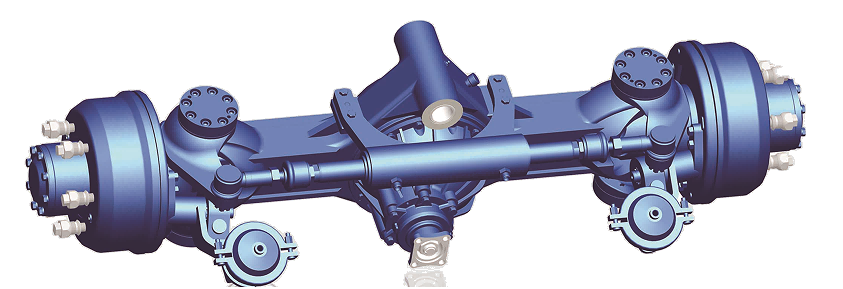

6.5 Ton Wheel Excavator Axle
1. Isuzu interchangeable parts are used in the main redactor assembly, mature and reliable, and purchase easily.
2. The whole axle case is cast steel, carrying big and good rigidity.
3. Near constant velocity universal joint transmission shaft, uniform angular velocity, high transmission efficiency.
4. Pneumatic CAM wheel side brake hoof type , safe and reliable.
5. Suitable for 6~7 tons wheel excavator.
Introduction:
6.5 Ton Wheel Excavator Axle is designed for compatibility with 6-7 ton wheel excavators, featuring an axle housing constructed with an integral cast steel structure. The main reduction gear incorporates standardized components to facilitate maintenance and replacement operations. For braking systems, it employs pneumatically actuated cam-operated expanding shoe-type wheel-end brakes, ensuring secure and reliable performance in compliance with industrial safety requirements.
Main technical parameters:
Total transmission Ratio | 6.167 |
Maximum output torque | 7000N.m |
Rating load | 4500Kg |
Braking way | CAM type pneumatic |
The brake pressure | 0.8Mpa |
Parking brake lifting pressure | 0.8Mpa |
Oil request for driving axle (API standard) | GL-5:85W/90 Gear Oil (above -12℃) GL-5:80W/90 Gear Oil (above -26℃) |
Suitable wheel hub | 6.5-16 |
Suitable tire | 7.5-16 |
Wheel lubrication | 2 lithium lubrication grease |
