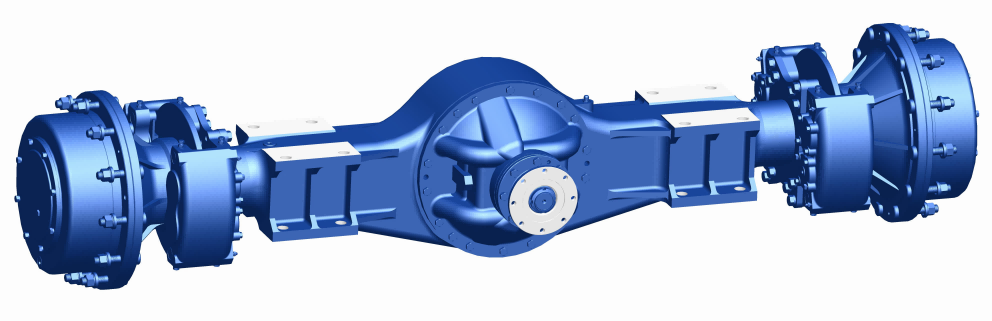

430 HP Tractor Drive Axle
1. The final drive employing constant - height bevel gears has an efficiency 3% higher and a noise level 5dB lower compared to conventional straight - cut gears.
2. The wheel - mounted planetary reduction features a compact layout, operates smoothly, and offers stable output.
3. The one - piece cast steel housing offers excellent load - bearing capacity and structural stiffness, making it suitable for heavy - duty usage scenarios.
4. Caliper disc brakes can generate high braking torque and ensure smooth and reliable stopping performance under all working conditions.
5. This product is applicable to 400 - horsepower tractors.
Introduction:
430 HP tractor drive axle is specifically engineered for tractors with a power output ranging from 380 to 430 horsepower, and it is characterized by a two-stage reduction setup. In the final drive mechanism, Oerlikon constant-height spiral bevel gears are employed. Meanwhile, the newly designed planetary reduction gearing that is mounted on the wheel guarantees a compact and efficient operation.The axle housing, which is made of a single-piece cast steel, offers exceptional rigidity and is capable of bearing heavy loads. It is equipped with caliper disc brakes that ensure reliable and prompt stopping power. Thanks to these technical characteristics, this axle demonstrates outstanding performance in terms of transmission efficiency, load-bearing capacity, and braking effectiveness.
Main technical parameters:
Total transmission Ratio | 20.475 |
Maximum input torque | 9500N.m |
Load each axle | 40000Kg |
Braking oil pressure | 11MPa |
Braking moment | 14600N.m |
Oil request for driving axle (API standard) | GL-5:85W/90 Gear Oil (above -12 ℃) |
Oil request for brake | Synthetic brake fluid of DOT3 or 719,not allow mix! |
