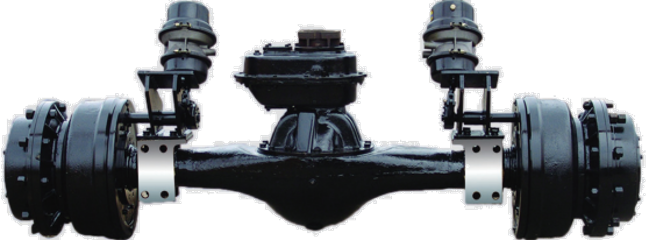

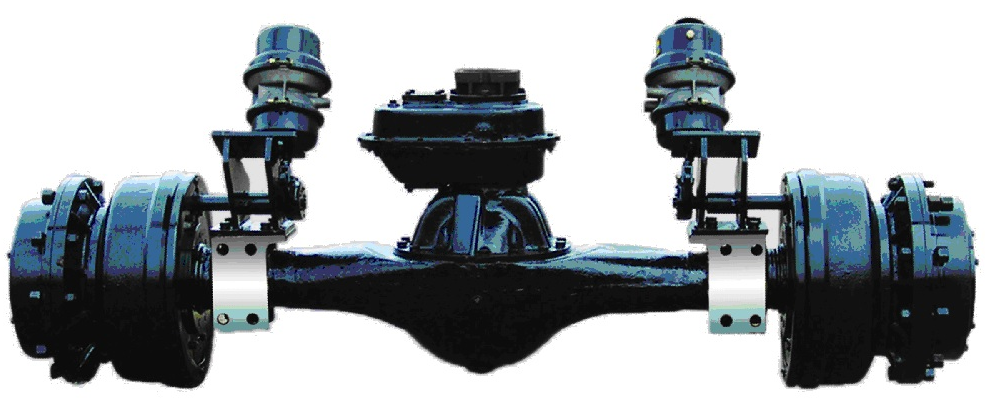

22 Tons Of Mixing Machine Axles
1. This equipment comes with a two-speed gearbox, providing diverse sizes of motor input interfaces to meet different needs. 2. The main reduction component employs Gleason spiral bevel gears, achieving high transmission efficiency while minimizing noise generation. 3. Its NGW-type planetary gear transmission system is ingeniously designed, being compact and reliable, and ensuring a smooth running state. 4. The axle housing, made of cast steel through integral casting, possesses remarkable bearing capacity and excellent rigidity. 5. A drum brake is utilized, which combines the functions of driving brake and parking brake, guaranteeing powerful braking force. 6. It is specifically designed for mixers weighing between 21 and 23 tons.
Introduction:
This equipment, designed for mixers weighing 21 - 23 tons, features a two-speed gearbox with diverse motor input interface sizes. Its main reduction uses Gleason spiral bevel gears for high-efficiency, quiet operation. The compact and reliable NGW-type planetary gear transmission, along with the integrally cast steel axle housing of high bearing capacity and rigidity, works in tandem with a drum brake integrating driving and parking functions to ensure overall excellent performance.
Main technical parameters | ||
Axle total transmission ratio | 23.26 | |
Speed ratio Of transmission | I1 | 1 |
I2 | 7.02 | |
Maximum rating load | 20000kg | |
Maximum input torque | 712.5N.m | |
Starting air pressure of parking braking | 0.8MPa | |
Air pressure of shift | 0.6-0.8MPa | |
Travel of shift | 17.5±1 | |
