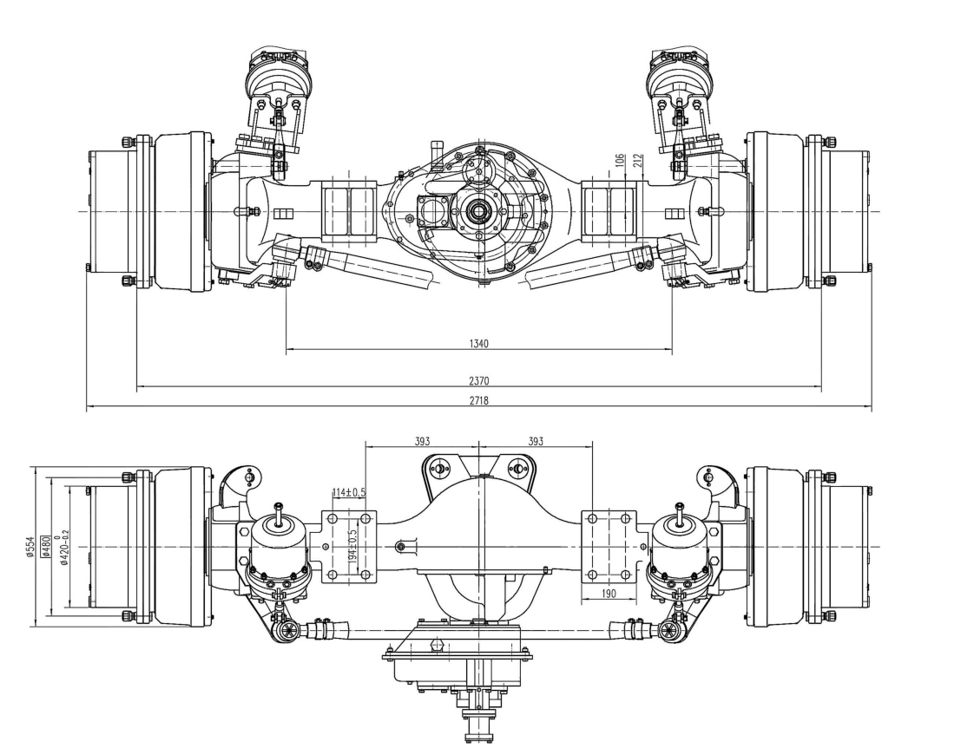

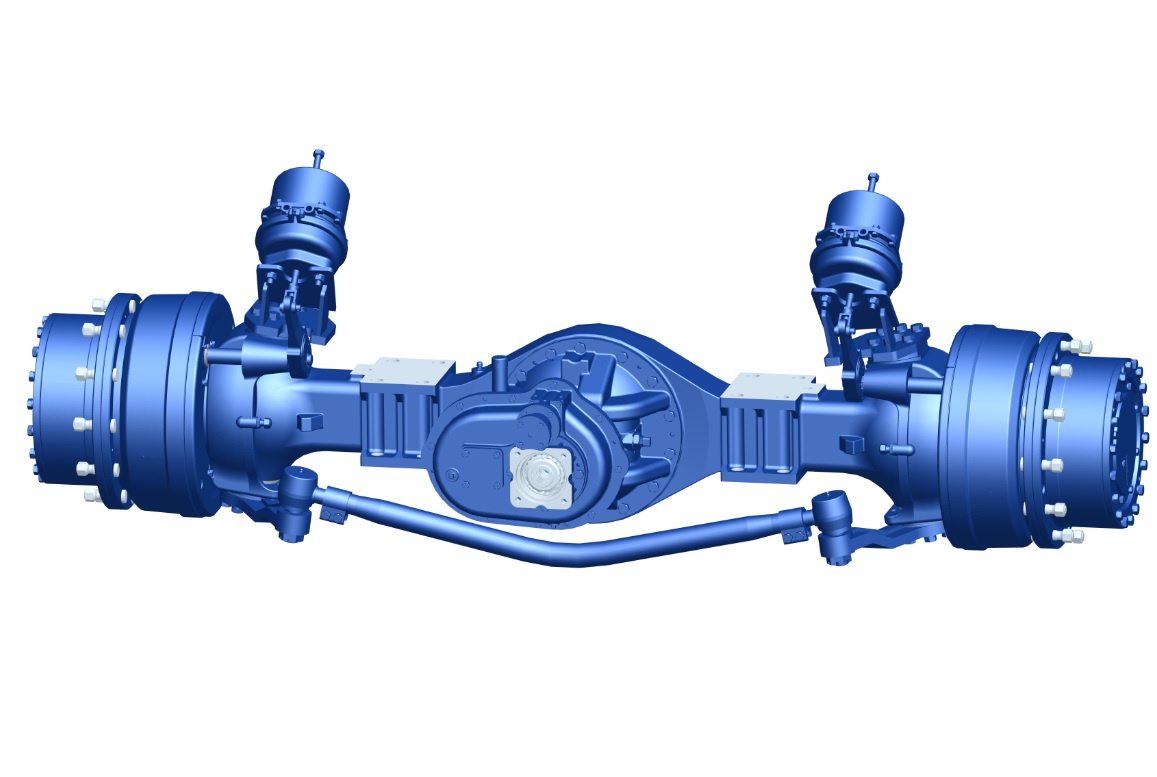

Mixer Axle
1. The three-stage deceleration transmission structure ensures stable and reliable output.
2. Equipped with a two-speed gearbox for deceleration, it has multiple motor input interface sizes to meet various configuration requirements.
3. The main deceleration adopts Gleason spiral bevel gear transmission, featuring high efficiency, smooth operation and low noise.
4. The wheel side uses the NGW planetary deceleration mechanism, with a scientific and compact design.
5. The axle housing is made of cast steel and integrally cast, having good rigidity and high load-bearing capacity.
6. The drum brake combines service and parking braking functions, providing large braking torque, safety and reliability.
7. This equipment is suitable for 23-ton cold recyclers.
Introduction:
This equipment, suitable for 23-ton cold recyclers, has unique advantages: It adopts a three-stage deceleration transmission structure combined with a two-speed gearbox. The former ensures a stable and reliable output, while the latter can meet different configuration requirements with various motor input interface sizes. The main deceleration uses Gleason spiral bevel gear transmission, which is highly efficient, smooth, and produces low noise. The NGW-type planetary deceleration mechanism on the wheel side has a scientific and compact design. The axle housing, which is integrally formed from cast steel material, has excellent rigidity and a large load-bearing capacity. The drum brake integrates the functions of service braking and parking braking, with a large braking torque, ensuring both safety and reliability.
Main technica parameters | ||
0verall axle ratio | 25.9 | |
Reduction ratio | I1=1 | I2=7.237 |
Load each axle | 13000Kg | |
Maximum input torque | 712.5N.m | |
Angle of turning | ±25° | |
Braking air pressure | 0.6-0.8Mpa | |
Service braking torque | 23000N.m | |
Parking braking torque | 10000N.m | |
Air pressure of shift | 0.6-0.8Mpa | |
Travel of shift | 17.5±1 | |
