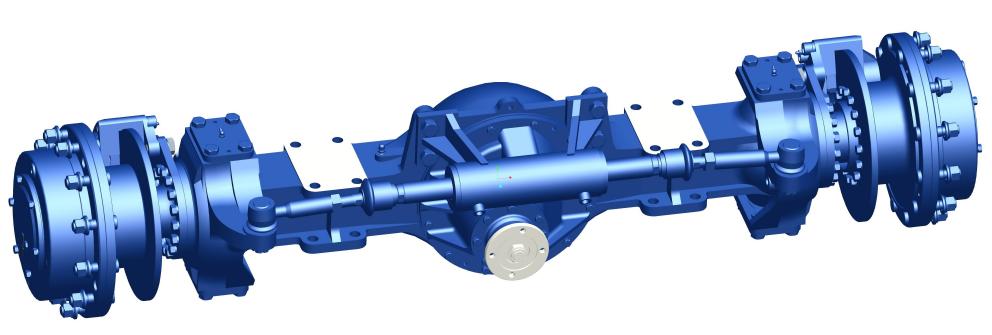

Steering Axle

Introduction:

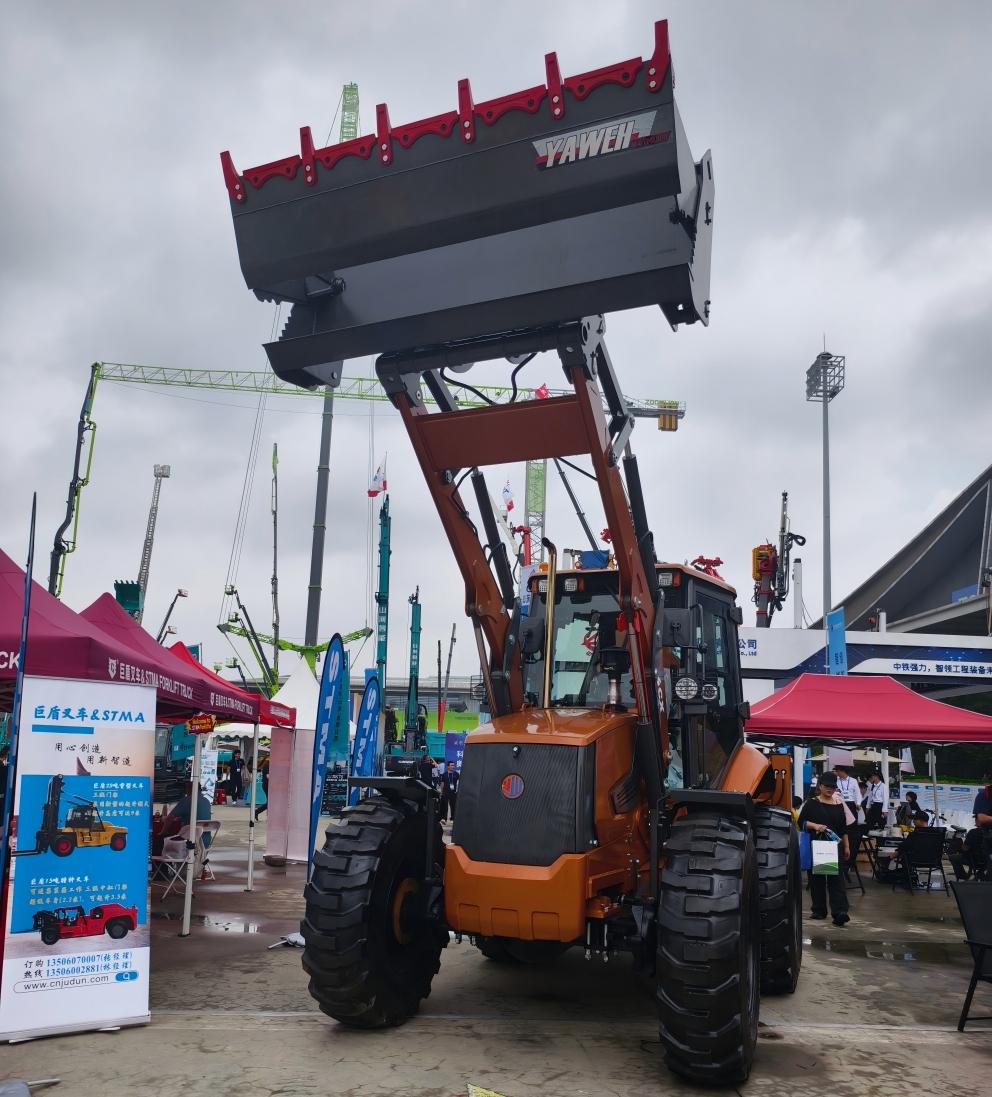

This highly compatible steering axle is suitable for various equipment and is now widely used in wheeled excavators, backhoe loaders and other mobile machinery. It has proven to operate stably on these vehicles, reliably handling complex working conditions. With its outstanding stability and flexible steering capability, it has earned high recognition from numerous OEMs and end-users. When installed on the host vehicle frame, it enables efficient four-wheel drive steering functionality. This design significantly enhances the machine's mobility in confined or challenging environments. Practical applications demonstrate that this structure substantially reduces the turning radius, improving operational flexibility and efficiency in limited spaces—making it ideal for obstacle-rich environments requiring frequent maneuvering, such as municipal construction, agricultural water conservancy projects, and small worksites.

In terms of quality, this steering drive axle has undergone rigorous bench testing in national laboratories, completing extended continuous simulated operational tests. It has validated its durability and reliability under extreme loads, frequent steering and high-speed travel. Test results confirm exceptional fatigue resistance and structural integrity, fully meeting high-intensity operational demands. Additionally, the axle offers multiple gear ratio configurations, allowing flexible selection based on OEM performance requirements and user scenarios—further enhancing adaptability and cost-effectiveness. Whether for traction-focused applications or transit efficiency scenarios, suitable configurations are available. Technologically mature and structurally reliable, this steering drive axle stands out with its excellent adaptability and diverse configuration options, making it an ideal choice for various wheeled engineering machinery. Cost-effective and dependable, its launch provides OEMs and end-users with superior performance and value assurance.

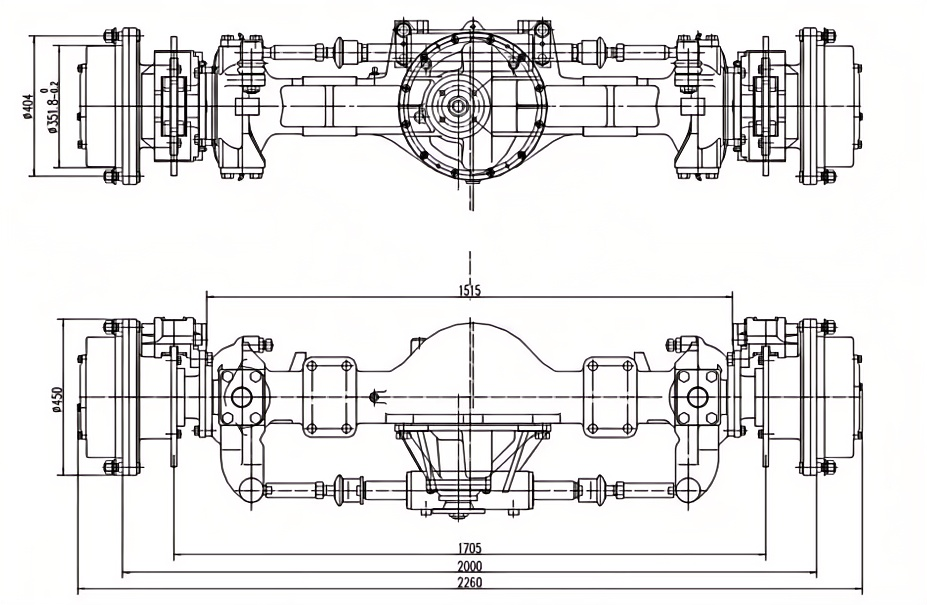

Main technical parameters:

Validation System:

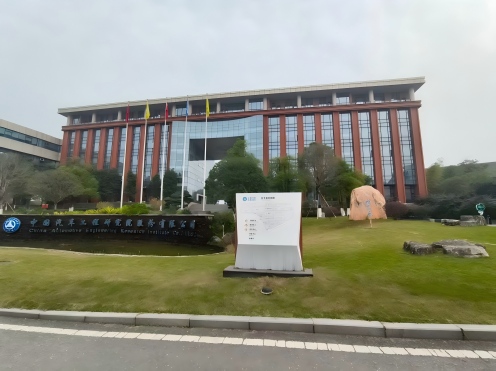

The bench testing for this product leverages the top-tier capabilities of a national laboratory, employing test protocols far exceeding industry standards. To thoroughly validate reliability and durability under the most severe conditions, the testing regimen deliberately simulates more extreme environments than actual operating scenarios. This represents not only rigorous validation of technical performance but also practical fulfillment of commitments to customers.

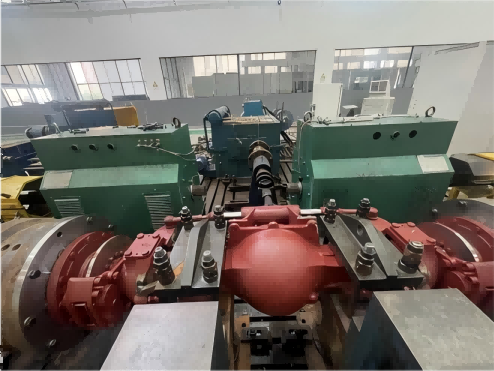

Within the bench testing framework, specialized gear fatigue testing was conducted: it primarily verifies the drive axle assembly’s ability to maintain stable output under high-torque, high-speed extreme conditions. The test utilizes an enhanced loading mode where the final torque value significantly exceeds rated values, thereby precisely validating the robustness, reliability, and efficiency of the gear transmission system.

Product Service:
Upon receiving orders, we quickly formulate production plans, utilize advanced equipment for manufacturing, and deliver on schedule. We also provide user manuals for this steering axle to help customers understand its structural and operational characteristics. Users can perform maintenance and troubleshooting of minor issues based on the manual. If problems occur, our after-sales engineers respond immediately and swiftly arrive on-site to provide support. Choosing us means choosing peace of mind.

Pricing:
The steering axle price varies slightly based on customized requirements. If you are interested in purchasing this product, please contact us with your needs. We are happy to provide solutions and quotations.
