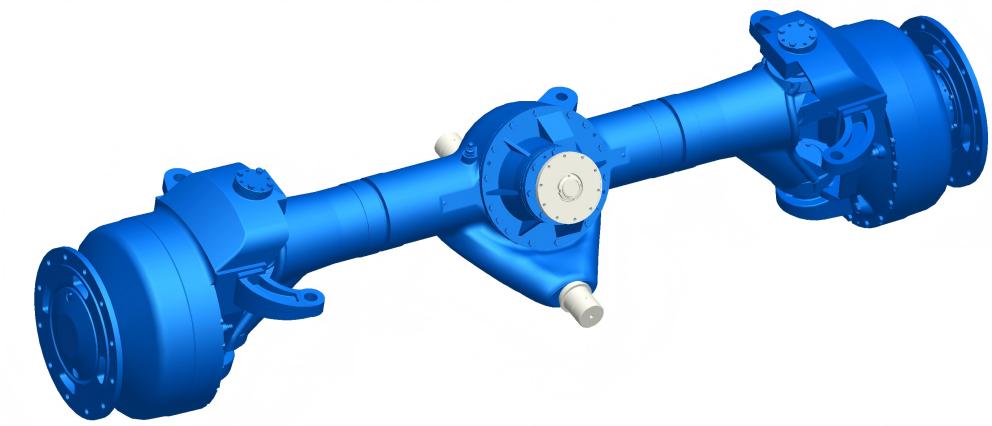

Axle of 230 HP Grader
1. The axle housing is made of cast steel material, boasting excellent overall load-bearing capacity and showing remarkable performance in terms of rigidity.
2. It has extremely outstanding anti-slip performance. 100% antiskid on muddy pavement.
3. The product has an excellent quality, significantly enhancing the vehicle's passability. During the driving process, the steering operation is light and flexible, and there will be no skidding situation.
4. Suitable for 230 horsepower graders.
Introduction:
The axle of the 230 HP grader is meticulously designed and perfectly matched for a 230-horsepower grader, having achieved large-scale exports to the Russian market thanks to its reliable performance. The entire front axle housing is crafted from high-strength cast steel, providing robust structural integrity. A constant-velocity double cross universal transmission shaft is employed to ensure stable and efficient power transmission. Users can optionally install a No-spin anti-slip differential according to their specific operational environment needs, enhancing adaptability to diverse terrains.
Main technical parameters:
Total transmission ratio | 17.357 |
Maximum input torque | 6100N.m |
Maximum input rotate speed | 3450r/min |
Rating load | 18800Kg |
Angle of turning | ±31° |
Term of turning | Hydraulic steering |
Oil request for driving axle (API standard) | GL - 5:85W/90 Gear Oil (above - 12°C) GL - 5:80W/90 Gear Oil (above - 26°C) |
