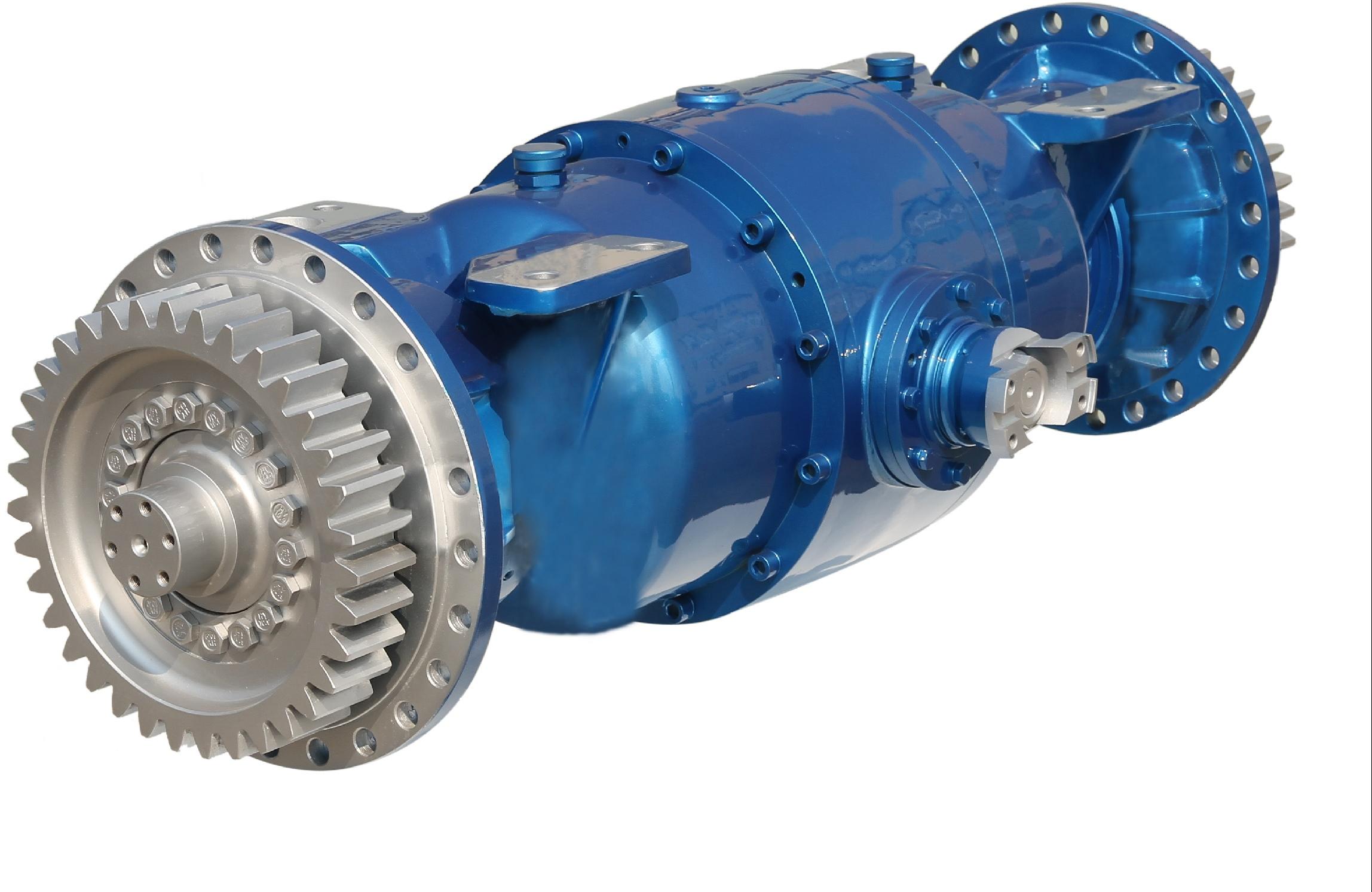

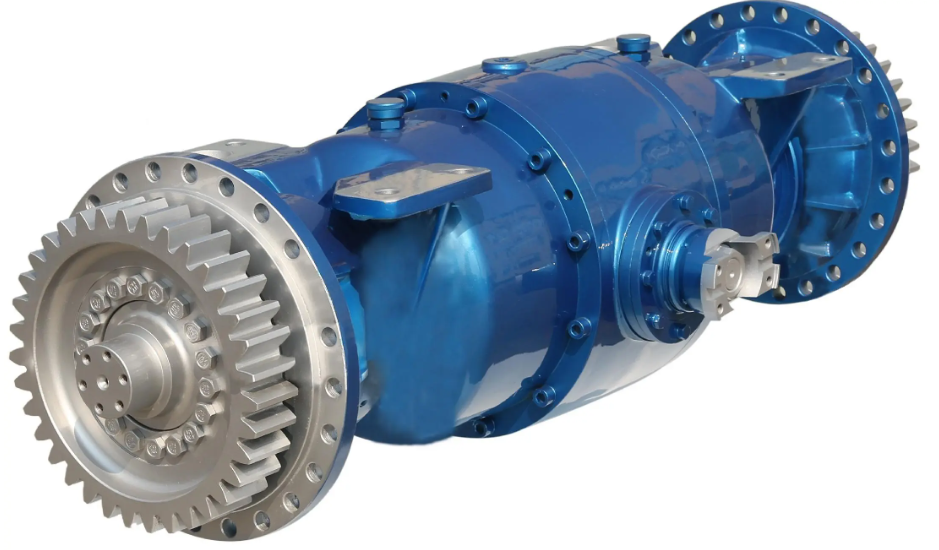

Intermediate Reducer Addembly Of Grader
1. The large gear on the wheel is responsible for power output.
2. The No-spin Limited Slip Differential (LSD) ensures stability when traversing complex road surfaces.
3. It features excellent quality and is highly reliable.
4. It is suitable for graders with a horsepower range of 160 to 220.
Introduction:
The intermediate assembly of the 200-horsepower grader is suitable for matching with graders with a horsepower range of 160 to 200. It adopts a two-stage transmission system in its entirety. Power is output through large gears at the wheel ends. A skid-proof differential is selected, enabling excellent passability on complex road surfaces. This product has been exported to multiple main engine factories abroad and has been verified by the market. Its product quality is stable and reliable.
Main technical parameters:
Total transmission ratio | 12.978 |
Maximum input torque | 6000N.m |
Maximum input rotate speed | 3100r/min |
Rating load | 12000Kg |
Oil request for driving axle | GL-5:85W/90 Gear Oil(above -12℃) |
