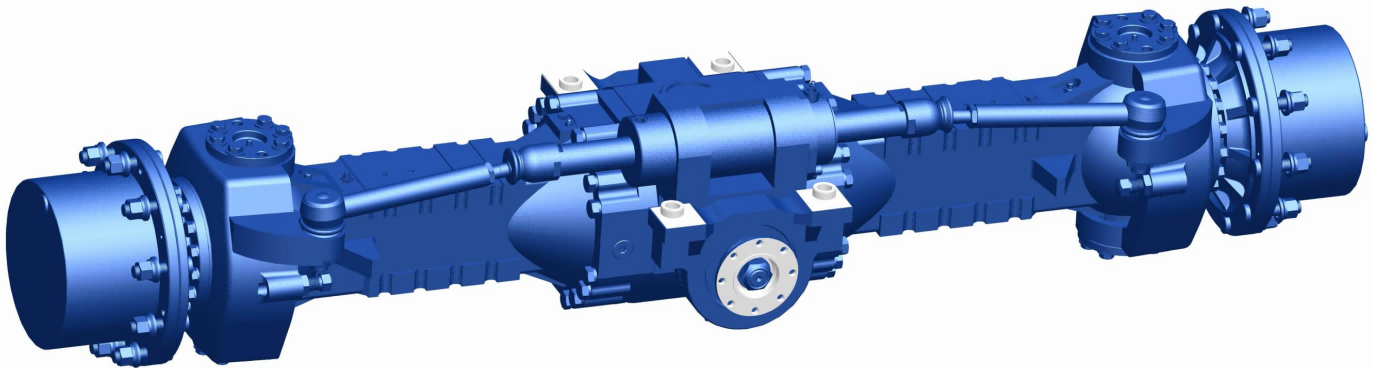

Wheeled Wet Spraying Machine Drive Axle
1. Gleason spiral bevel gears are employed for the main reduction, delivering outstanding transmission efficiency and minimizing noise during operation. 2. The wheel end incorporates an “NGW type” planetary reduction setup. This design stands out for its compactness and rational structural arrangement. 3. The braking mechanism utilizes caliper disc brakes. They offer a substantial braking torque, ensuring smooth and dependable stopping power. 4. Hydraulic power - assisted steering is integrated, allowing for effortless and agile maneuvering. 5. Constructed from integral cast steel, the axle housing demonstrates excellent load - bearing capacity and robust rigidity. 6. This equipment is well - suited for 16-20 ton wheeled wet spraying machine
Introduction:
Designed for 16-20 ton wheeled wet spraying machine , this equipment excels in performance. Its main reduction employs Gleason spiral bevel gears for high - efficiency, low - noise transmission, while the wheel end features a compact "NGW type" planetary reduction structure. The caliper disc braking system ensures large, stable torque for reliable stops, and hydraulic power - assisted steering enables agile handling. The integral cast steel axle housing offers excellent load - bearing capacity and rigidity, making it a robust choice for demanding operations.

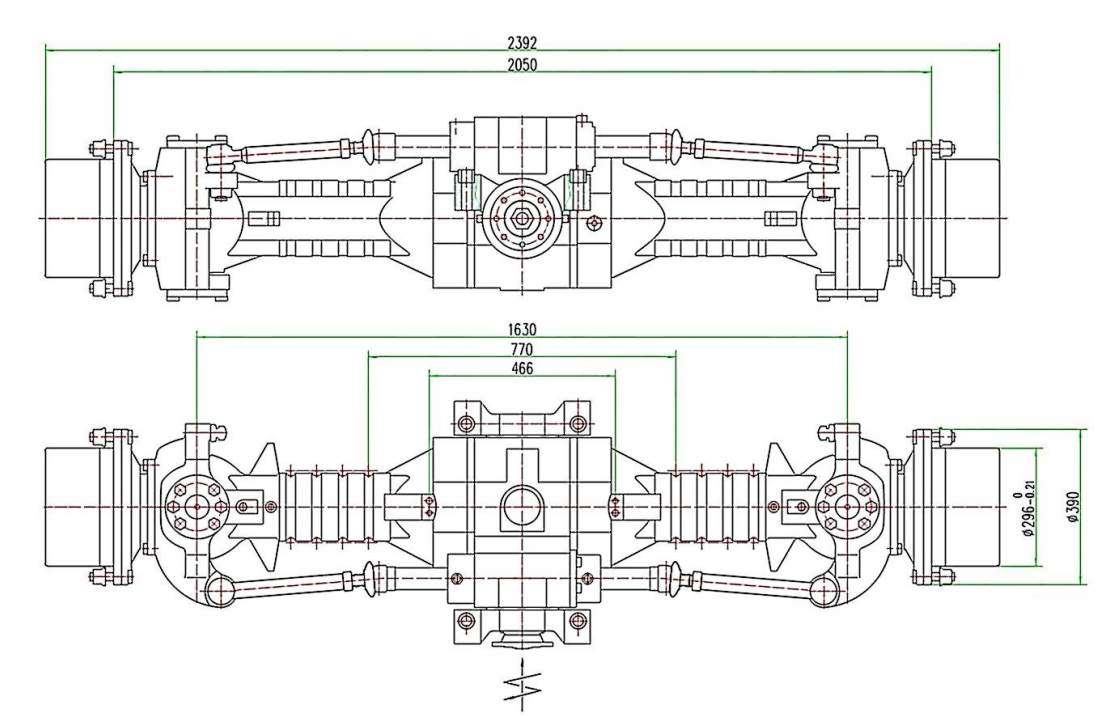

Main technical parameters:
Total transmission Ratio | 14.77/16.91/22 |
Maximum 0utput torque | 50000N.m |
Dynamic load each axle | 13000Kg |
Braking torque(single side) | 21000N.m |
Braking oil pressure | 4Mpa |
Braking displacement | 45-128ml |
Angle of turning | 37°/30° |
Steering cylinder pressure | 14Mpa |
oil request for driving axle(API standard) | GL-5:85W/90 Gear oil(above -12 ℃) |
Brake and cylinder oil | L-HL46 hydraulic oil |
