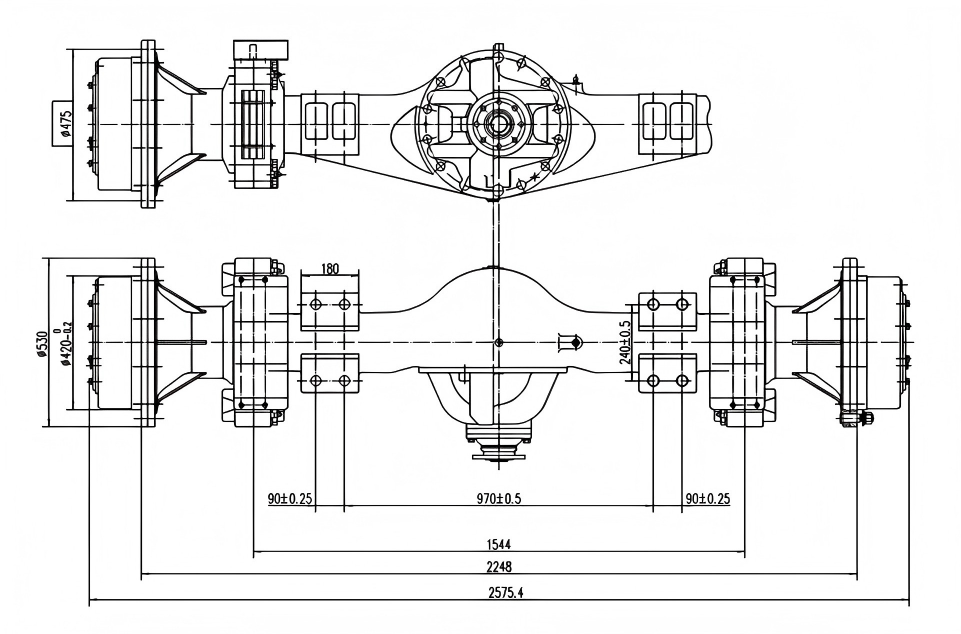

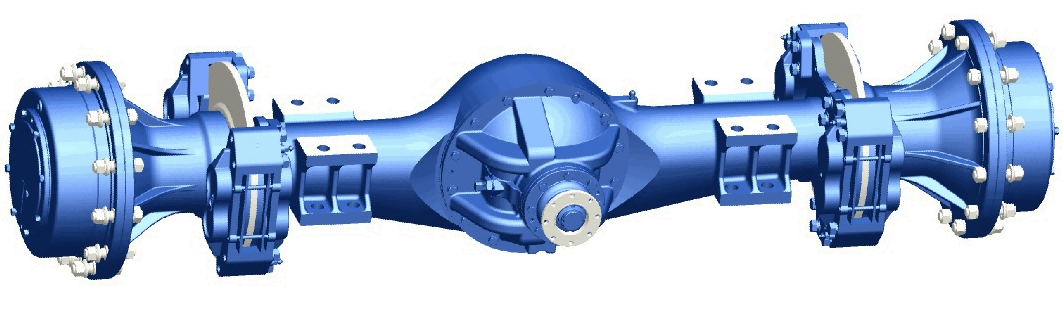

5 Ton Loader Axle
1. Two-stage gear drive offers multiple transmission ratios for versatile applications.
2. The main reducer featuring Gleason bevel gears ensures high transmission efficiency and low operational noise.
3. NGW-type planetary gear transmission is designed with a rational and compact structure for space-efficient integration.
4. The disc-caliper-type brake system guarantees high braking torque and reliable performance across different operating conditions.
5.It suits 5 - ton series loaders
Introduction:
5 ton loader axle incorporates a two-stage reduction drive architecture. The primary reduction stage utilizes a Gleason spiral bevel gear drive system, whereas the wheel-end reduction employs an NGW-type planetary gear mechanism. The axle housing is constructed from cast steel through precision casting processes, ensuring structural integrity and dimensional precision. For braking, a caliper disc brake system is integrated to deliver enhanced safety and consistent operational reliability across diverse working conditions.
Main technical parameters:
Total transmission ratio | 22.85 |
Maximum input torque | 5100N.m |
Load each axle | 27000Kg |
Braking oil pressure | 11MPa |
Braking moment | 13050N.m |
