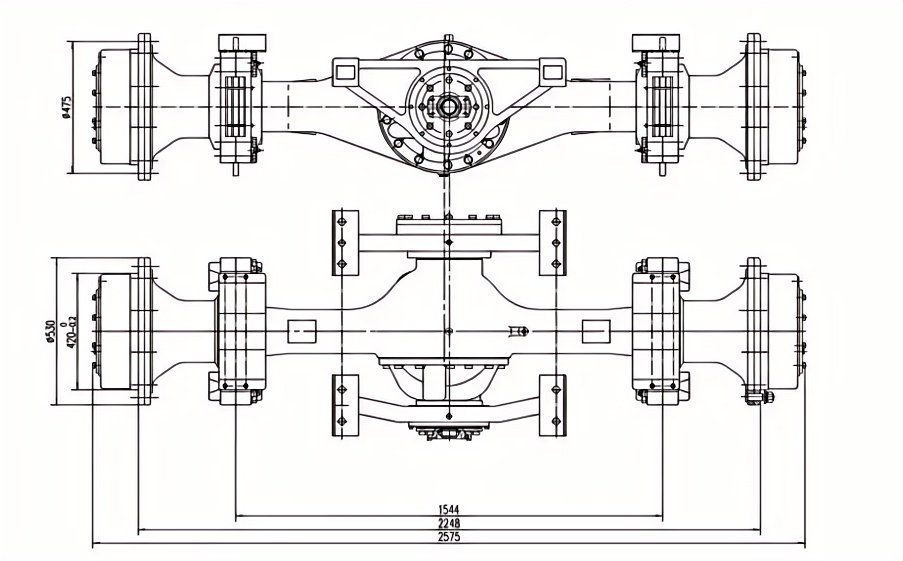

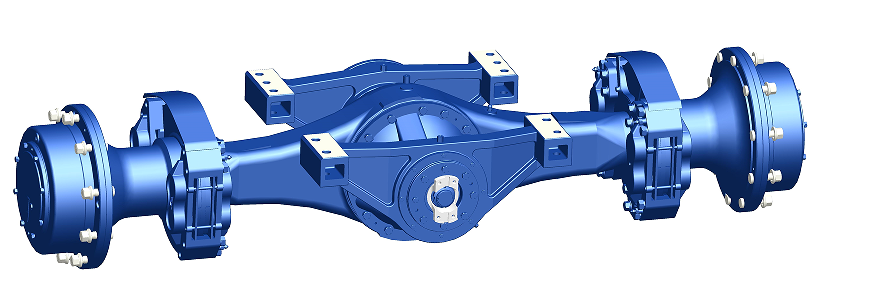

5 Ton Loader Swing Axle
1. The main reducer is equipped with high-strength, low-noise Oerlikon-type involute bevel gears.
2. The main reducer is equipped with high-strength, low-noise Oerlikon-type involute bevel gears.
3. The bridge housing, designed with a rectangular cross-section, is constructed from cast steel to offer excellent rigidity and high load-bearing capacity.
4. It utilizes disc brakes to provide stable, reliable, and high-torque braking performance.
5. An optional No-Spin anti-slip differential is available to enhance traction in challenging conditions.
Introduction:
The 5-ton loader axle is designed for 5-ton wheel loaders, integrating power transmission, swing steering and brake control. Its oscillating structure adapts to uneven terrain, providing better adaptability than rigid axles. The design includes Oerlikon's patented equal-height bevel gears, NGW planetary actuators and caliper disc brakes. It utilizes an oscillating structure, high contact ratio gears and intelligent braking to improve wheel loader efficiency and reduce maintenance costs in harsh environments such as mining, ports and industrial sites.
Main technical parameters:
Parameters Model | ZL50MBH | TL46B |
Total transmission Ratio | 22.85 | |
Maximum input torque | 5100N.m | 5000N.m |
Load each axle | 27000Kg | 25000Kg |
Braking oil pressure | 11MPa | |
Braking moment | 13050N.m | |
Single caliper brake fluid displacement | 8.8ml | |
