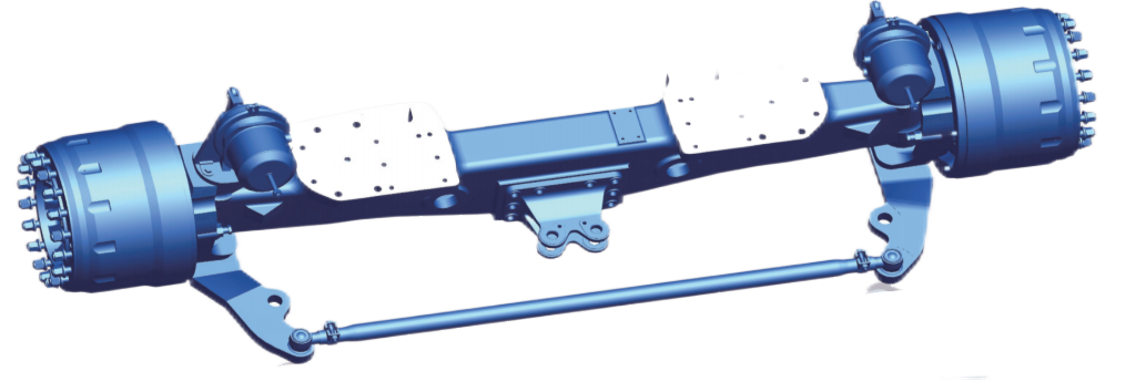

40 Ton Mining Truck Drive Axle
1. Lightweight design, leading the industry.
2. High braking torque, fast and reliable braking.
3. Engineered for durability, this high-reliability axle housing combines sleek, modern styling with superior load-bearing capacity and extended operational lifespan.
4.Suitable for the front axle of 25-ton mining trucks
Introduction:
Designed for wide-body mining trucks, the front axle's expanded steering angle minimizes turning radius for agile operation. Its drum brake system with robust torque output ensures reliable stopping power in extreme conditions.Engineered to withstand the harsh conditions of mining operations, this product ensures reliable performance under extreme load and environmental stress.
Main technical parameters:
Rated load | 25000Kg |
Maximum angle of turning | 37° |
Angle of inclination for front axle | 1° |
Angle of interior inclination for pin | 5° |
Ton-in of front axle | 4-6mm |
Brake specification | Φ500×250 |
Brake chamber specification | 36/30 |
Brake pressure | 0.8MPa |
Whole axle braking torque | 90000N.m |
