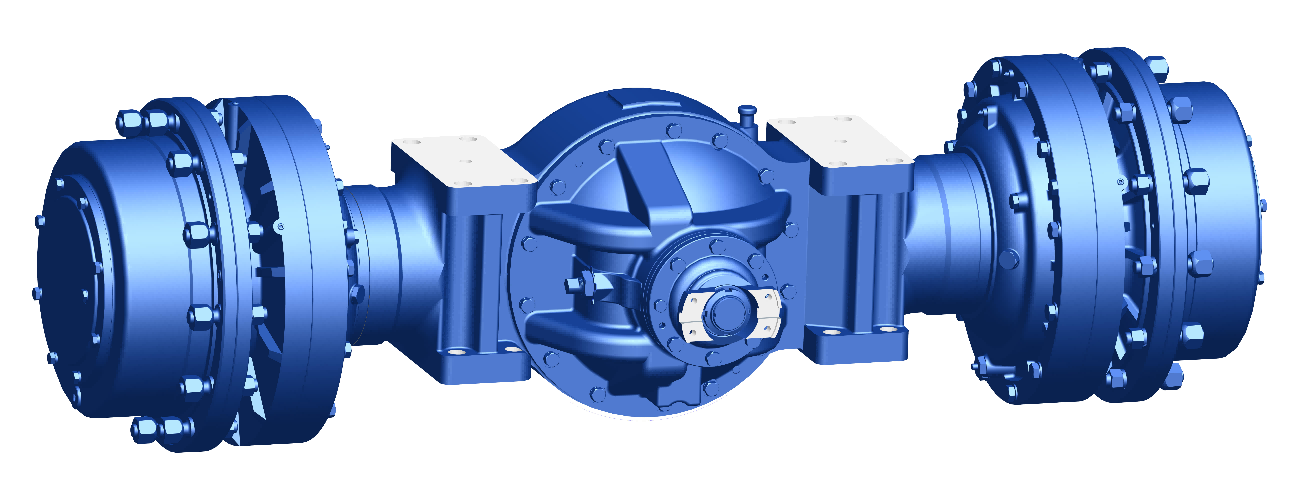

3 Cubic Underground Scraper Axle
1. The main reducer is equipped with Gleason bevel gears, enabling it to achieve high transmission efficiency and operate with minimal noise.
2. The NGW planetary gear system stands out due to its compact structure and refined design, which has been optimized for top-notch performance.
3. The cast steel axle housing is engineered to possess not only strong rigidity but also a high load-bearing capacity. It is integrated with a two-stage reduction design that boosts power transfer efficiency.
4. In wet and dusty working settings, the floating oil seal proves its dependability, consistently performing its sealing function without fail.
5. The braking system incorporates wet brakes that combine service and parking functions. These brakes are characterized by a large braking torque, smooth deceleration, and unfailing reliability.
6. This piece of equipment is purpose-built to fulfill the requirements of 3-cubic underground carry scrapers, making it a perfect fit for such applications.
Introduction:
Designed for 3-cubic underground carry scrapers, this equipment features a main reducer with Gleason bevel gears for efficient, quiet operation. Its compact NGW planetary gear system is optimized for performance. The cast steel axle housing, combined with a two-stage reduction, offers high load capacity and rigidity. The floating oil seal functions reliably in wet, dusty conditions, while the integrated wet brakes provide large torque and smooth, reliable stopping.
Main technical parameters:
Total transmission Ratio | 26.118 |
Maximum input torque | 5000N.m |
Load each axle | 19050Kg |
Braking oil pressure | 10Mpa |
Single braking capacity | 164ml |
Single braking moment | 20000N.m |
0il request for driving axle(API | GL-5:85W/90 Gear Oil(above-12 ℃) |
Brake oil and Brake cooling oil | hydraulic oil |
