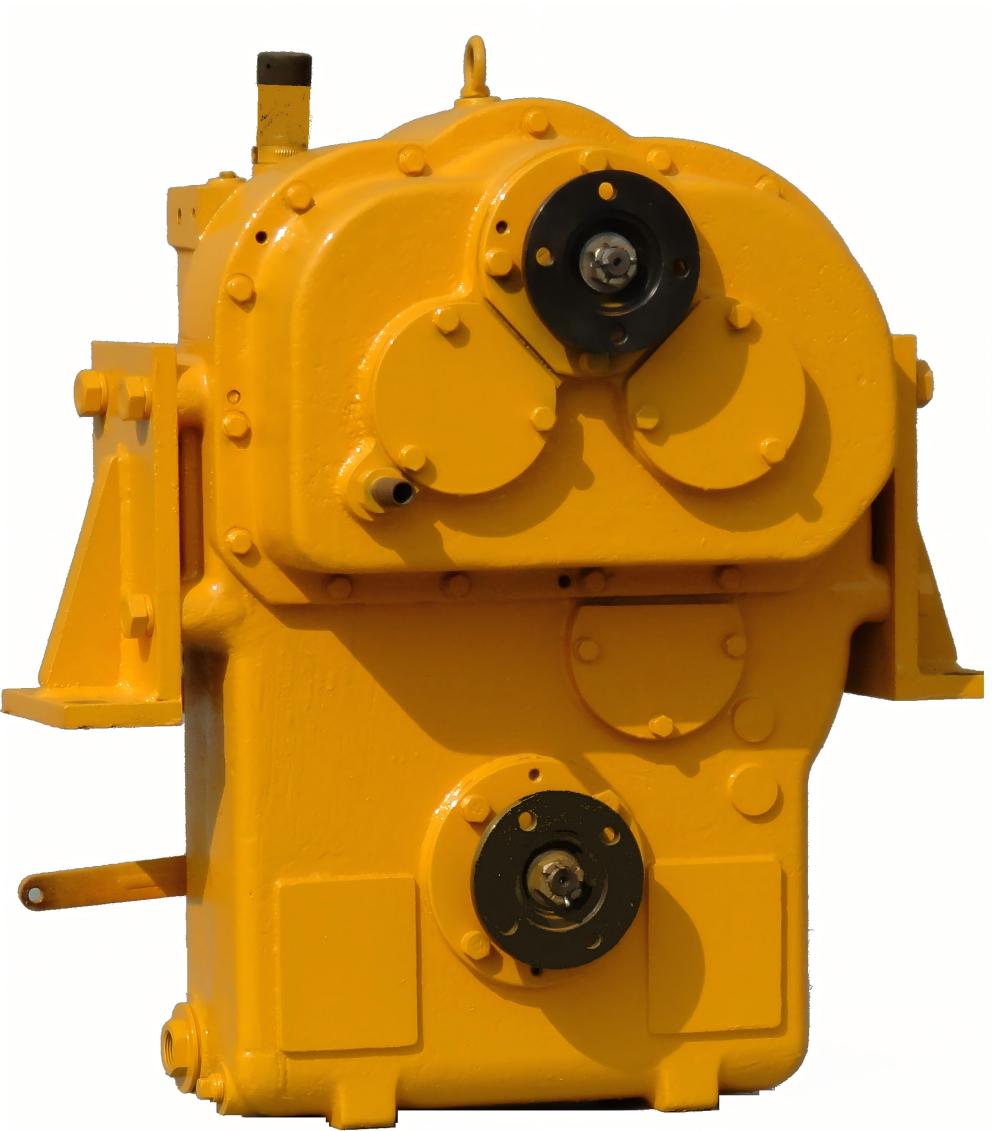

Loader Gearbox
1. Fixed-shaft power-shift transmission, featuring a space-saving design and user-friendly controls for smooth, precise shifting.
2. Offers two forward and two reverse speed ratios. Provides a well-matched speed change range.
3. Parking brake options include disc-caliper type or shoe type, ensuring reliable and safe operation.
4. Manufactured using CNC precision machining and subjected to rigorous testing for superior quality.
5. Suitable for 1.5 to 2 cubic yard loaders.
Introduction:
This fixed-shaft power shift transmission is produced via CNC machining. It is equipped with two forward and two reverse gears, offering two selectable speed ratio combinations. The system ensures dependable operation, intuitive control, and maintains precise power transmission efficiency.
Main technical parameters:
Rating input power | 40-62KW | Speed ratio on | ZL15F | 7L15F-1 | ZL15F-2 | |
Rating input rotation speed | 1800～2400 r/min | FI | 2.47 | 2.16 | 3.104 | |
Oil pressure of shift | 1.2-1.5MPa | FII | 0.88 | 0.77 | 1.104 | |
Pressure of cooling oil | 0.15-0.25MPa | RI | 2.62 | 2.21 | 3.237 | |
Work temperature | 80-110 ℃ | RII | 0.90 | 0.79 | 1.129 | |
Oil request | No.8# hydraulic drive oil and No.22# turbine oil | |||||
