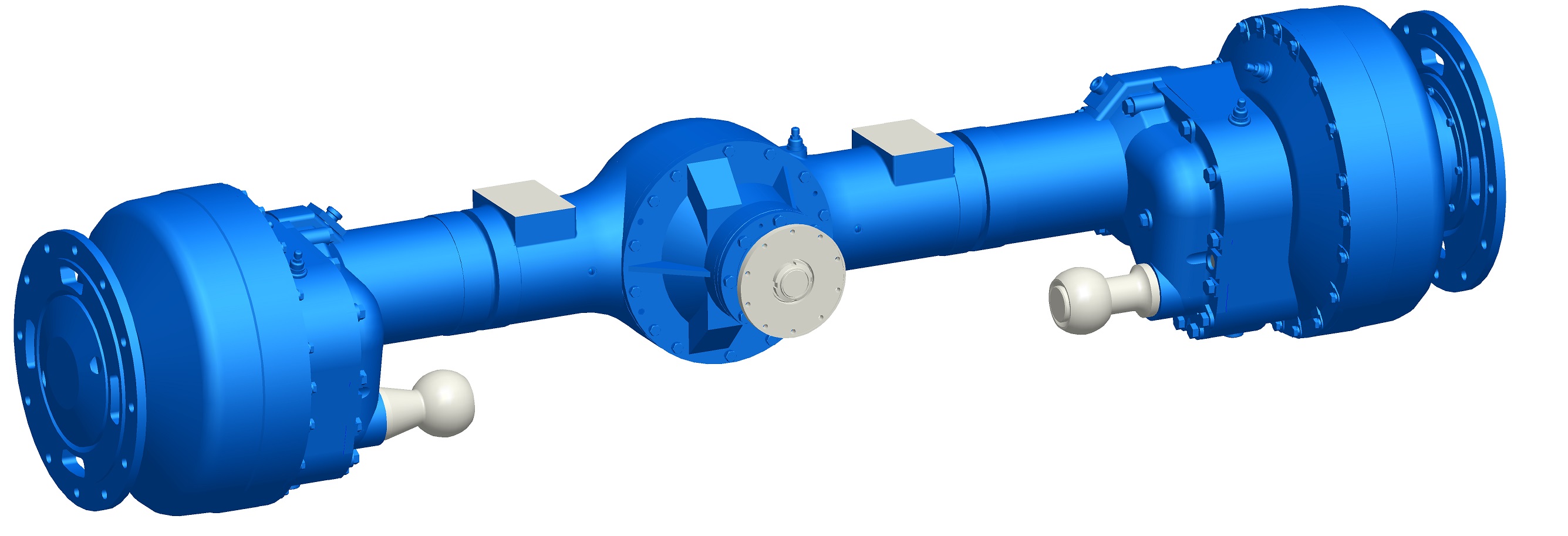

230 HP Grader Axle
1.Axle housing offers exceptional load capacity and rigidity.
2.Superior traction across diverse terrains.
3.Braking system ensures safety and reliability with extended service life.
4.It exhibits favorable overall drivability .
5.Reliable quality, bulk exports.
Introduction:
230 HP Grader Axle is specifically engineered for 230-horsepower motor graders, featuring reinforced design and material upgrades for core transmission components such as gears and bearings. This enables it to achieve a maximum input torque capacity of 6,100 Nm. Utilizing a two-stage reduction technology, it efficiently converts input torque into robust driving force, ensuring exceptional traction performance under demanding conditions like heavy-load climbing and rough terrains. This design fully meets international customers' high standards for equipment reliability.
Main technical parameters:
Total transmission ratio | 17.357 |
Maximum input torque | 6100N.m |
Maximum input rotate speed | 3450r/min |
Rating load | 18800Kg |
Brake air pressure | 0.75MPa |
Brake structure | Wet multi-disc brake |
Oil request for driving axle | GL-5:85W/90 Gear Oil(above -12℃) |
230HP Grader Drive Axle | Heavy-Duty Custom Solution：
This heavy duty axle is the result of transnational collaborative R&D practices: Our technical team conducted an in-depth, three-month on-site data collection campaign at the customer's overseas construction sites to precisely analyze load characteristics across various working conditions. Through multiple joint technical seminars with the customer's engineers, we optimized parameters such as axle housing stiffness and reduction ratios. The outcome is a drive solution meticulously tailored to local operating environments, setting a benchmark for successful customized development in the construction machinery industry.
