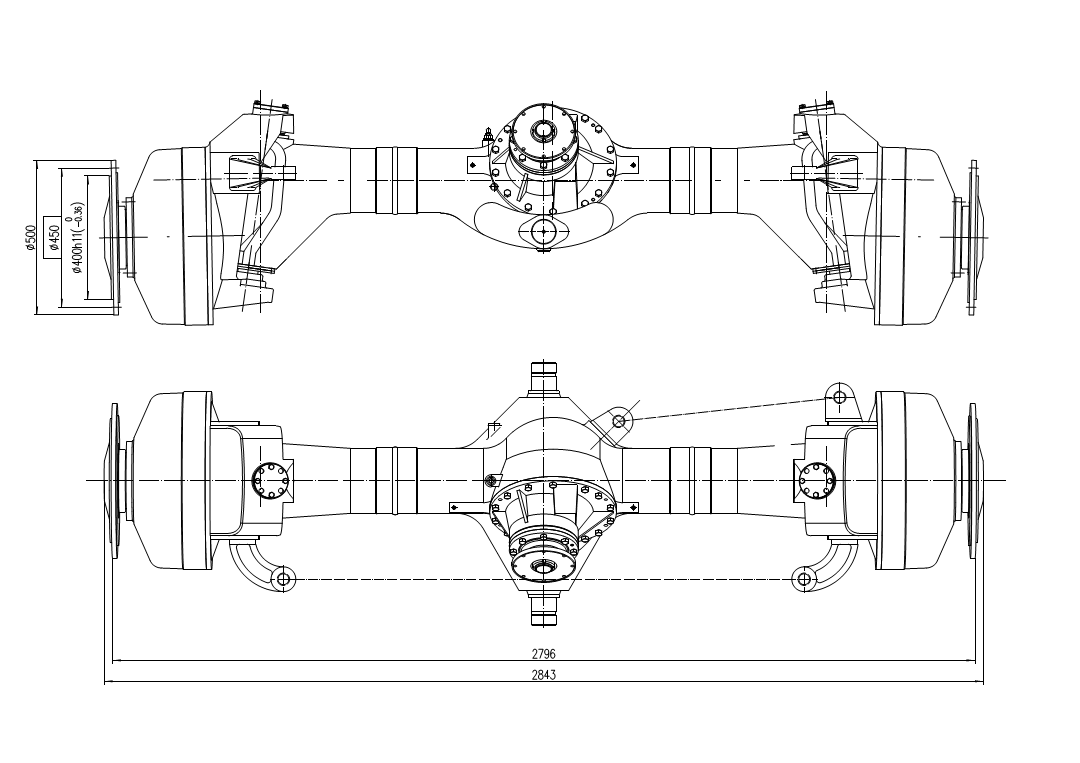

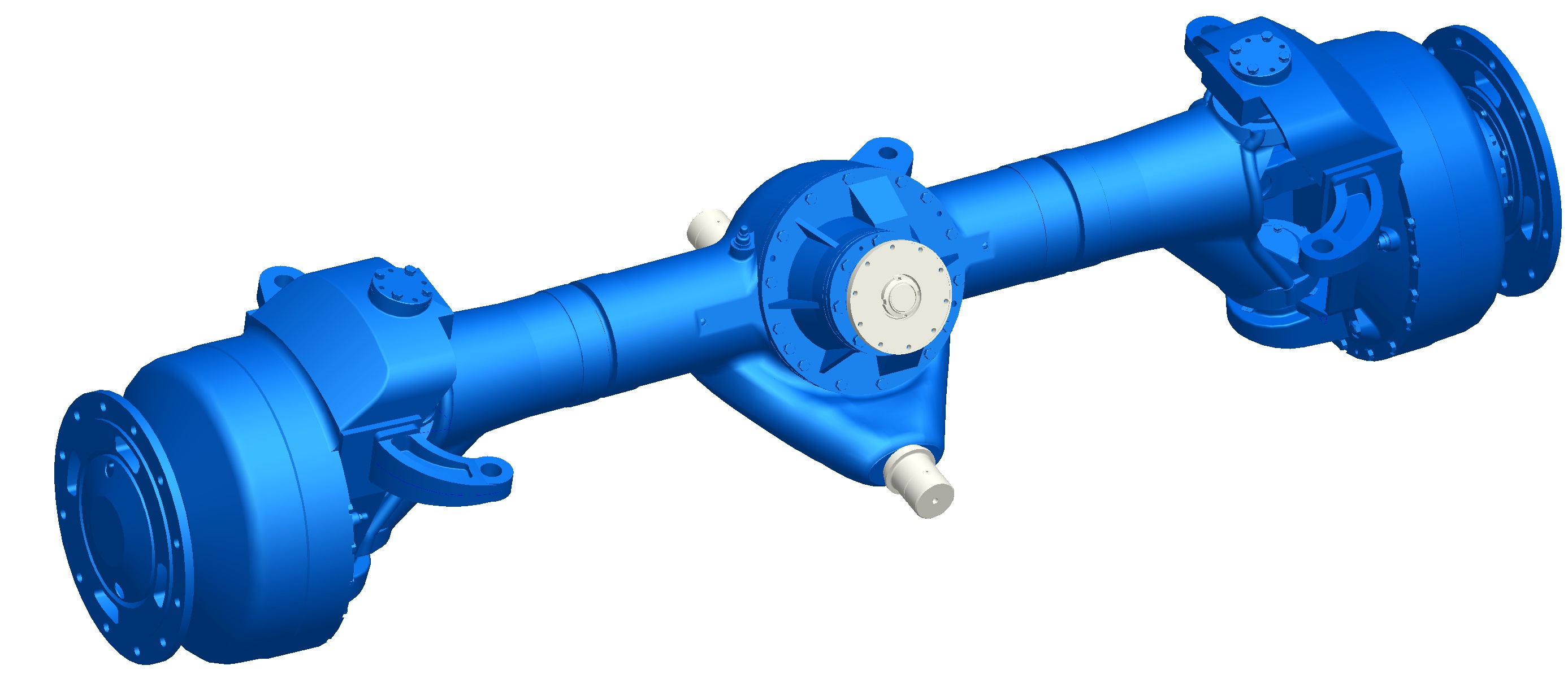

230 HP Grader Drive Axle
1.Light and responsive steering with no side-slip resistance.
2.Excellent complex terrain maneuverability.
3.Premium quality with proven reliability.
4.High ground clearance for superior off-road performance.
5.Heavy-duty axle housing with exceptional rigidity.
Introduction:
230 HP grader drive axle is a high-performance steering drive axle specifically engineered for motor graders. Utilizing advanced manufacturing processes and premium materials, it delivers stable and reliable driving force and steering control under diverse complex working conditions.This drive axle not only features exceptional load capacity and durability, but also significantly enhances motor grader's operational efficiency and maneuverability, making it the ideal choice in the construction machinery sector.Designed to perform across multiple terrains and working conditions - whether loose soil, gravel surfaces or hard pavements - it demonstrates consistent excellence. Its superior sealing system effectively prevents dust, mud and other contaminants from entering internal components, ensuring long-term stable operation of critical assemblies.
Main technical parameters:
Total transmission ratio | 17.357 |
Maximum input torque | 6100N.m |
Maximum input rotate speed | 3450r/min |
Rating load | 18800Kg |
Angle of turning | ±31° |
Team of turning | Hydraulic steering |
Oil request for driving axle | GL-5:85W/90 Gear Oil(above -12℃) |
Competitive Advantages of Our Drive Axle Manufacturing Enterprise:
Annual production capacity of 50,000 drive axles with economies of scale.
Strategic partnerships with leading OEMs including Sany Heavy Industry, Liugong Group, and Shantui.
Bulk exports to international markets including Russia.
Core team with 15+ years of OEM collaborative development experience.
Comprehensive product line covering:Construction machinery、Mining equipment、Agricultural machinery、Forestry equipment.
