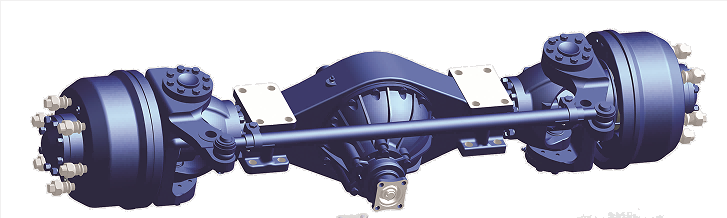

6.5 Ton Steering Drive Axle
1. Isuzu interchangeable parts are used in the main redactor assembly, mature and reliable, and purchase easily.
2. The whole axle case is cast steel, carrying big and good rigidity.
3. Near constant velocity universal joint transmission shaft,uniform angular velocity, high
transmission efficiency.
4. Hydraulic normally open up shoe type wheel side brake, safe and reliable brake.
5. Suitable for 6~7 tons wheel excavator.
Introduction:
6.5 ton steering drive axle is designed for compatibility with 6-7 ton wheeled excavators. The axle housing adopts an integral cast steel structure for enhanced durability. The main reducer utilizes standardized components to facilitate maintenance and replacement operations. For braking systems, it employs a hydraulically actuated, normally-open expanding shoe-type wheel-end brake mechanism, ensuring operational safety and reliability through fail-safe design principles.
Main technical parameters:
Total transmission Ratio | 6.167 |
Maximum output torque | 7000N.m |
Rating load | 3000Kg |
Angle of turning | 30° |
Braking oil pressure | 10Mpa |
Single brake caliper capacity | 5ml |
Oil request for driving axle (API standard) | GL-5:85W/90 Gear Oil (above -12℃) GL-5:80W/90 Gear Oil (above -26℃) |
Oil request for brake | Oil request for brake:DOT3 Synthetic brake fluid of DOT3 or 719,not allow mix! |
Suitable hub | 6.5-16 |
Suitable tire | 7.5-16 |
Wheel lubrication | 2 lithium lubrication grease |
Weight | 380Kg |
