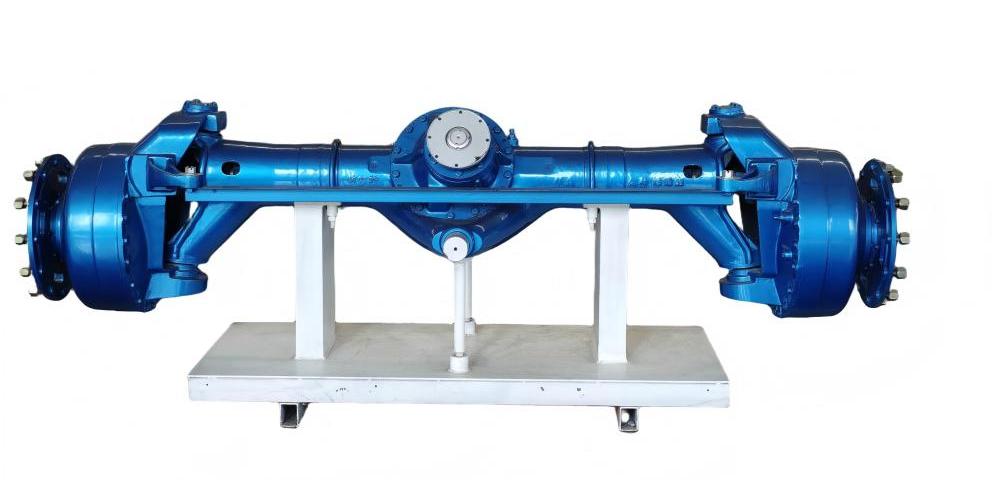

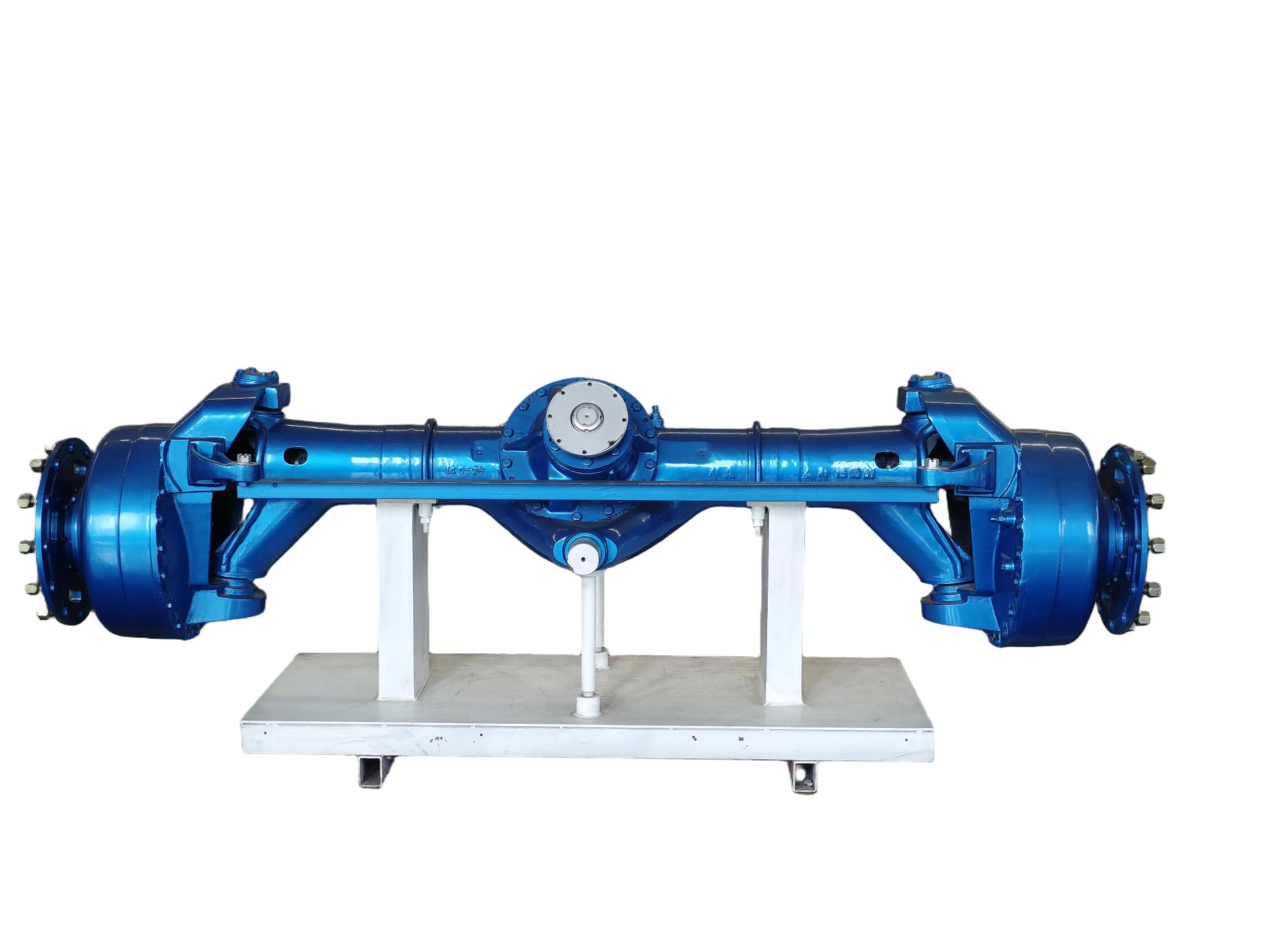

Grader Drive Axle
1. The steering method is hydraulic steering, which is 100% anti-skid in mud.
2. Reliable and high quality, exported to Russia in large quantities
3. Vehicle passability is significantly enhanced
4. The axle housing carries the hard core of strength
Introduction:

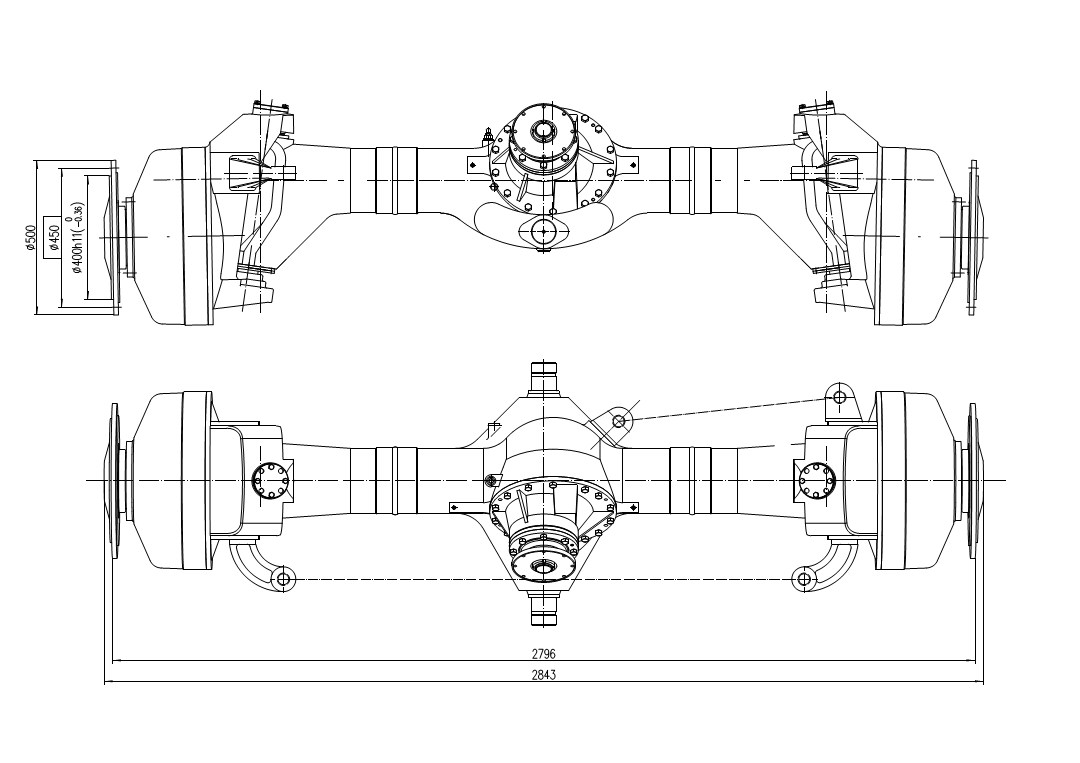

This front axle of the grader is specifically designed and matched for a 230-horsepower grader, and it has achieved large-scale exports to the Russian market. The entire front axle housing is made of cast steel, and a constant-velocity double cross universal transmission shaft is used to achieve power transmission. Users can optionally install a No-spin anti-slip differential according to their needs.
Main technical parameters:
Total transmission ratio | 17.357 |
Maximum input torque | 6100N.m |
Maximum input rotate speed | 3450r/min |
Rating load | 18800Kg |
Angle of turning | ±31° |
Term of turning | Hydraulic steering |
Oil request for driving axle (API standard) | GL - 5:80W/90 gear oil (above - 12°C) GL - 5:80W/90 gear oil (above - 26°C) |
Shandong Lutong grader drive axle is a high-performance drive axle specially designed for graders. It adopts advanced manufacturing technology and high-quality materials to ensure stable and reliable driving force and steering control under various complex working conditions. This drive axle not only has excellent load-bearing capacity and durability, but can also effectively improve the working efficiency and operational flexibility of the grader, making it an ideal choice in the field of construction machinery. This transaxle is suitable for a variety of terrains and working conditions and performs well in soft soil, gravel or hard roads. Its sealing performance is excellent, effectively preventing dust, muddy water and other impurities from entering the interior, ensuring the long-term stable operation of core components.
Shandong Lutong grader drive axle is equipped with an advanced steering system. The drive axle can achieve precise steering control to ensure that the grader can operate flexibly in narrow or complex terrain. Its steering mechanism is responsive and easy to operate.

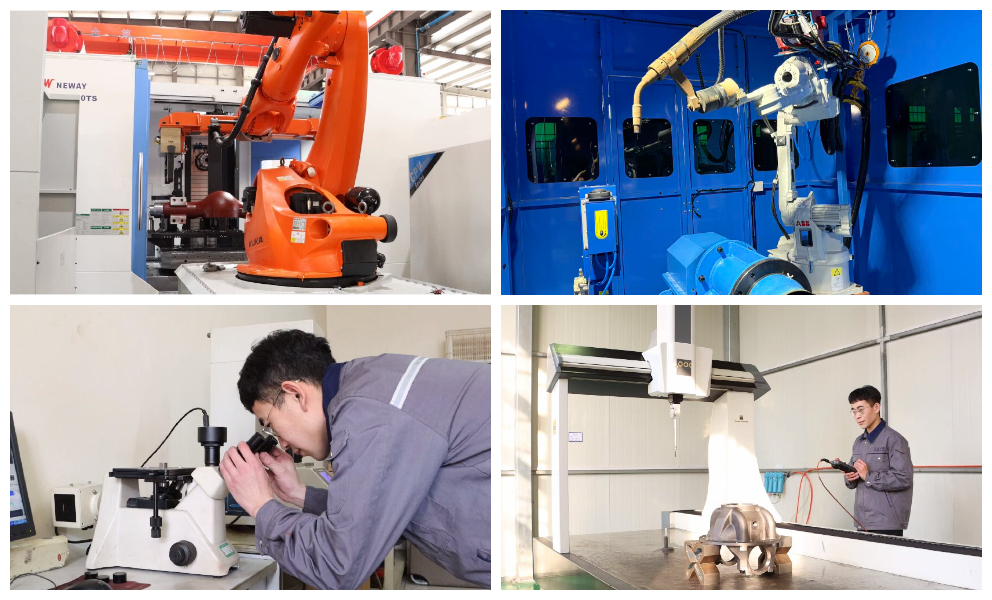

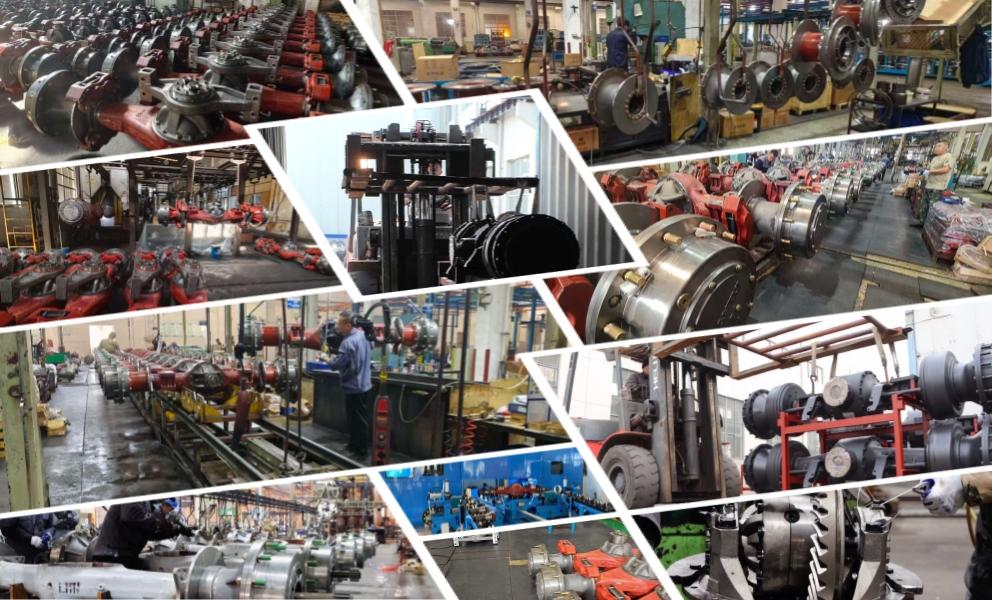

As a well-known brand in the field of construction machinery, Shandong Lutong has always been committed to providing customers with high-quality, high-performance drive axle products. We have mature production technology and strict quality control system to ensure that each drive axle can meet the strict needs of customers. When you choose a motor grader drive axle, you choose an engineered solution that is efficient, reliable and long-lasting.
